UDT-S1 Pack-Level Testers
UDT-S1 instruments provide a rapid, non-destructive means of detecting kiloohm-range internal short circuits and other anomalous self-discharge in fully-assembled battery modules and packs.
-
Run end-of-line checks for cell internal short circuits at the pack level, preventing safety and performance issues in the field.
-
Screen packs for internal shorts during system assembly, prior to installation or replacement, or in place as part of routine maintenance.
-
Run non-destructive diagnostics on failed or returned packs to determine the extent of any anomalous self-discharge.
Scan times measured in minutes. Kiloohm-range sensitivity.
SensLi UDT-S1 instruments enable identification of subtle defects that are invisible to battery management systems, allowing packs with faulty cells to be removed from service before they become a threat to performance or safety.
Specifications
8 (pack series units)
+2.0 V to +4.35 V
6.75” x 6.75” x 1.25”
USB-B; max current draw 200 mA
Runs on user-supplied Windows PC
Model
UDT08-S1
Number of channels
Cell voltage range
Dimensions
Power and communication
Software

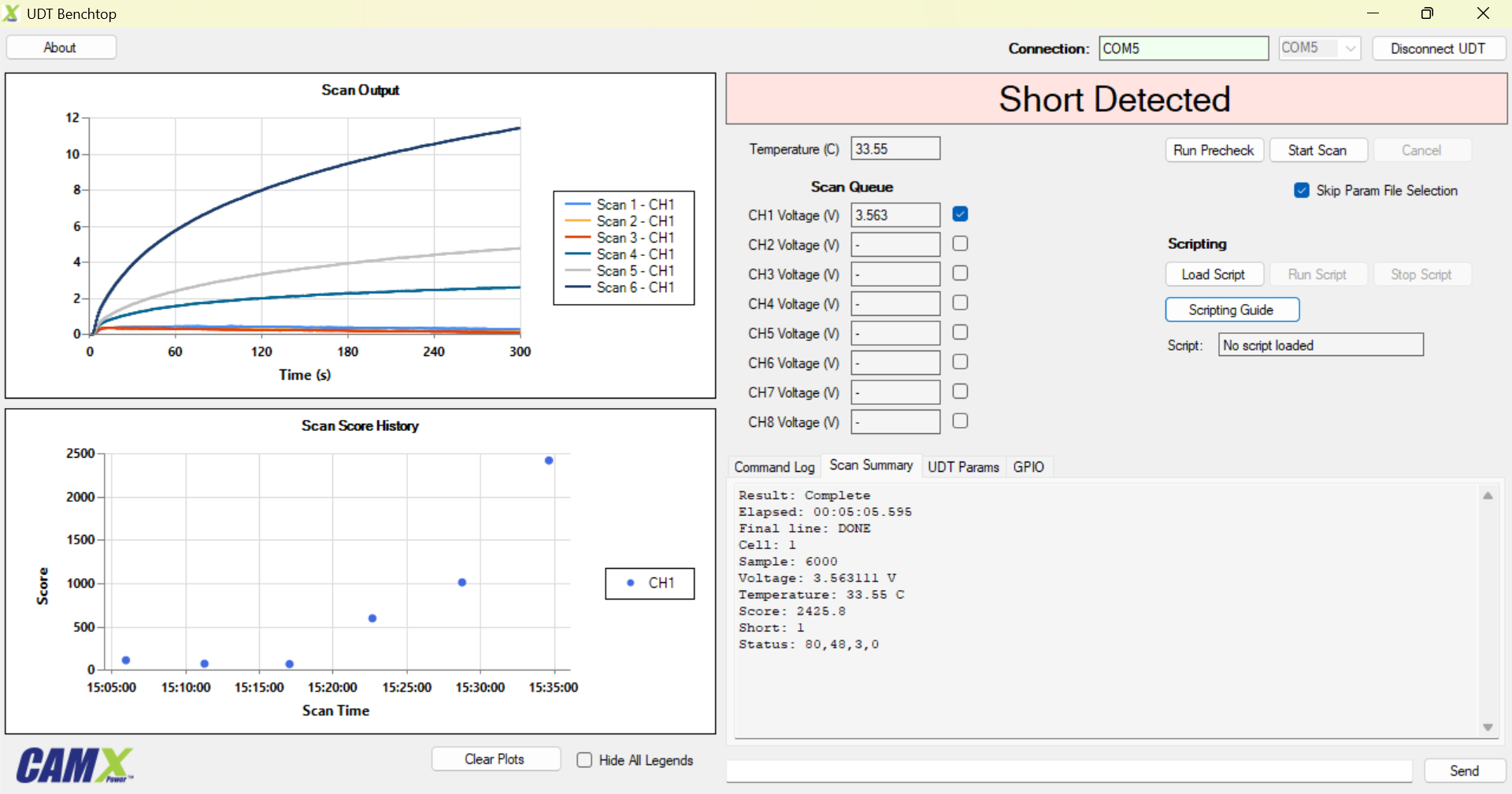

UDT-S1 instruments ship with interface software that is easy to use in a production, maintenance, or laboratory environment (click to expand).
